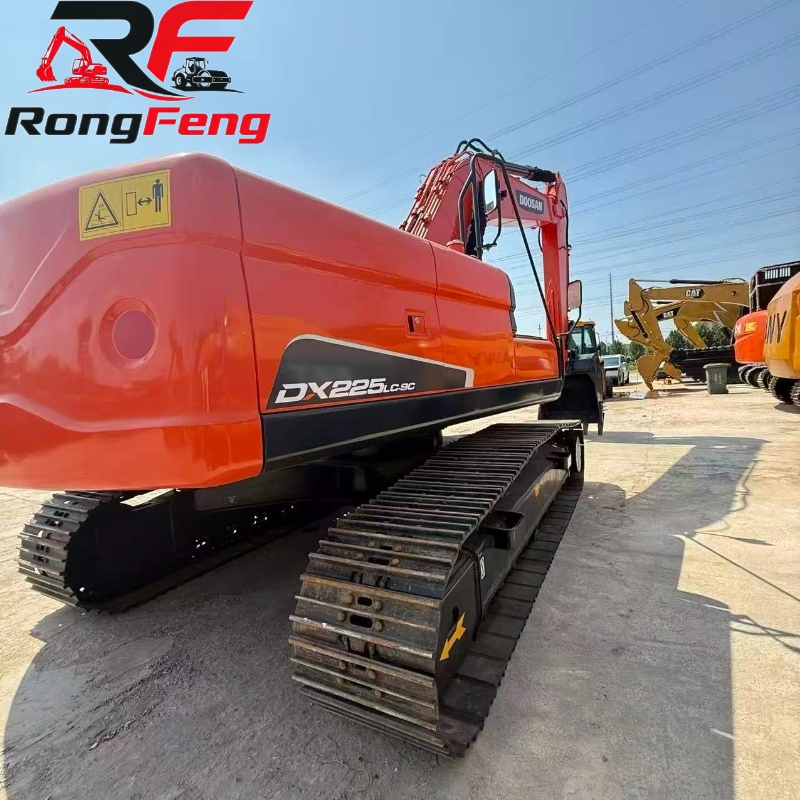

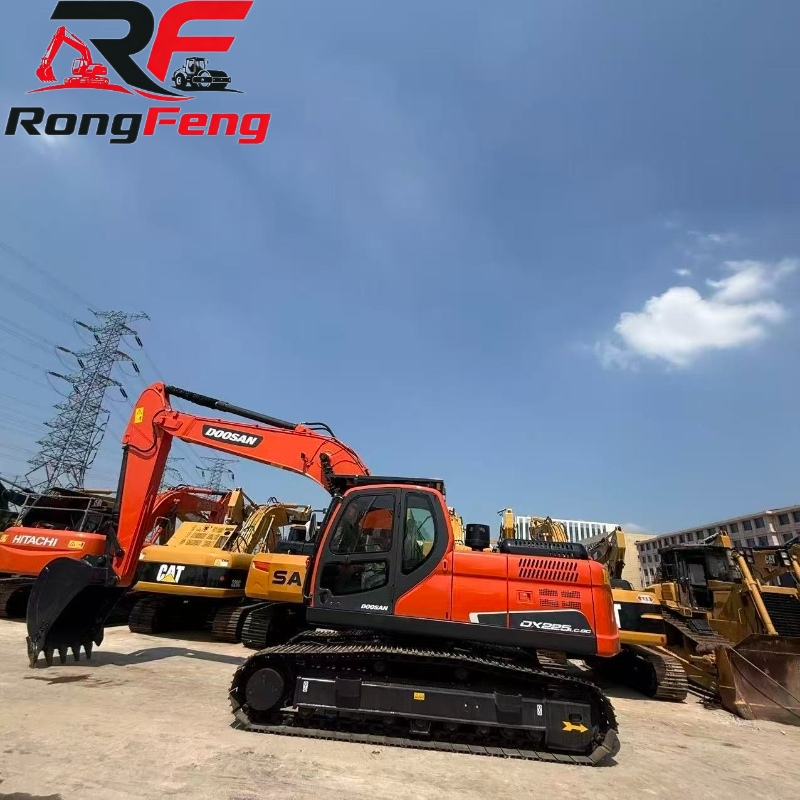

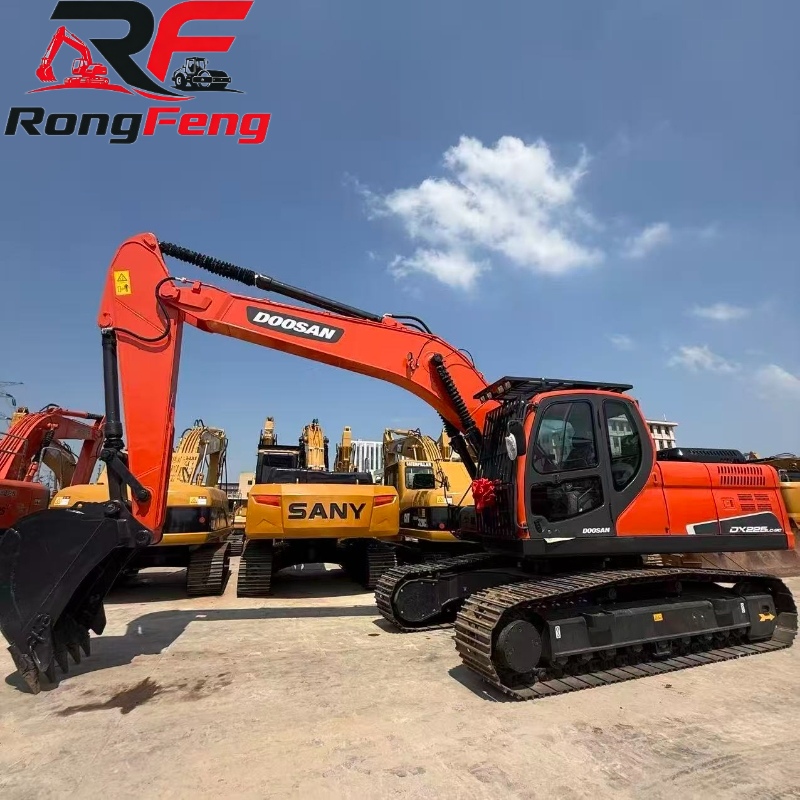

Used Doosan DX225‑9 Crawler Excavator

Description

🔹 Brief Introduction

This is a used Doosan DX225‑9 23‑ton crawler excavator in excellent working condition. Well‑maintained with low hours, no oil leaks, strong power and stable performance. Ideal for earthmoving, trenching, foundation work, road construction and landscaping. Fully inspected and ready for export worldwide.

🔹 Full Specifications

Basic Information

• Brand: Doosan (Develon)

• Model: DX225‑9

• Operating Weight: 22,600–23,300 kg (23 Ton)

• Production Year: 2019–2023

• Working Hours: 800–2,200 h

• Stock Quantity: 3 Units

• Overall Condition: Used, Very Good

Dimensions & Transport

• Overall Length: 9,520 mm

• Overall Width: 2,990 mm

• Overall Height (to cab): 2,990 mm

• Transport Volume: 42.8 m³

• Transport: 40GP Container, Flat Rack

Bucket & Digging Performance

• Standard Bucket Capacity: 1.0–1.28 m³

• Optional Bucket: 0.9–1.4 m³

• Max Digging Depth: 6,610 mm

• Max Digging Radius: 9,880 mm

• Max Unload Height: 7,180 mm

• Bucket Digging Force: 140–168 kN

Engine System

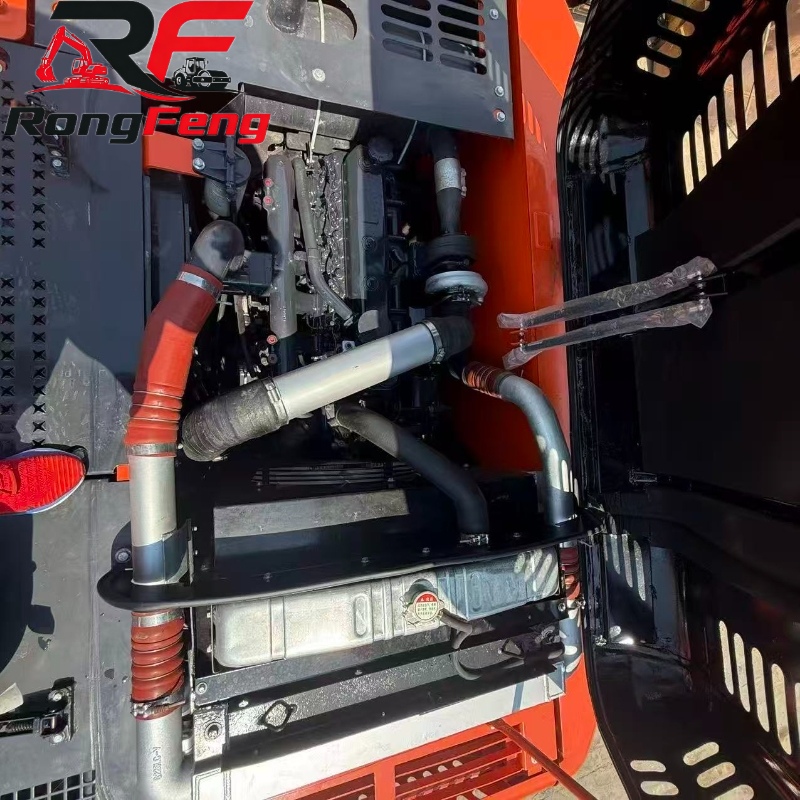

• Engine Model: Doosan DL06‑K 6‑cylinder diesel engine

• Rated Power: 130 kW (175 hp) @ 1,800 rpm

• Fuel Tank Capacity: 400 L

Hydraulic System

• Main Pumps: 2 × Variable Piston Pumps

• Max Flow: 2 × 212 L/min

• System Pressure: 34.3 MPa

• Hydraulic Oil Tank: 180 L

Working Performance

• Travel Speed: 3.2–5.6 km/h

• Swing Speed: 11.2 rpm

• Gradeability: 35° (70%)

• Ground Pressure: 0.45 kg/cm²
