Top‑Notch Hitachi ZX200 Ready To Ship Worldwide

Description

🔹 Brief Introduction

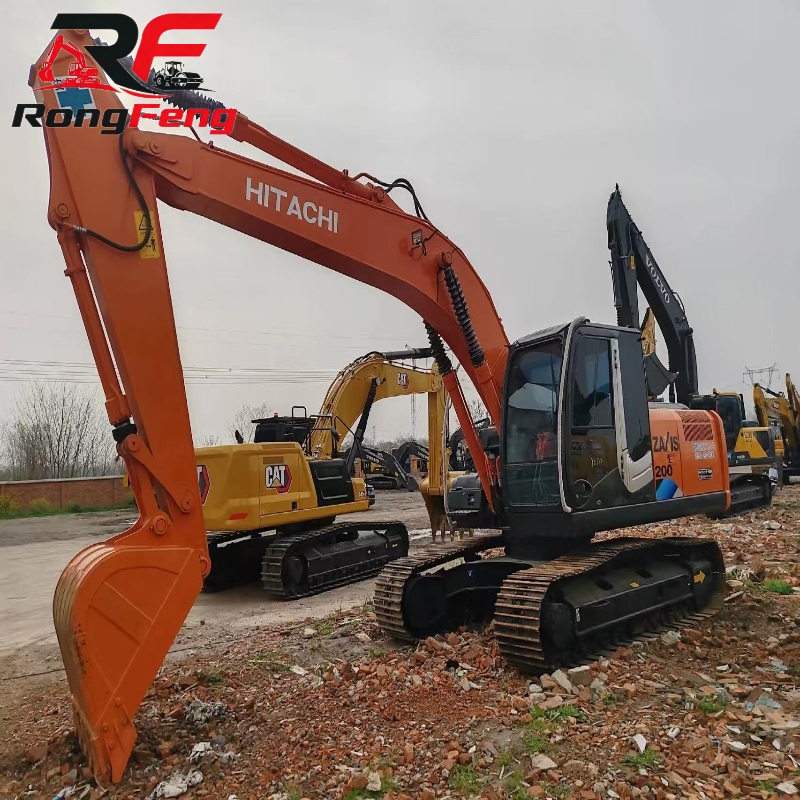

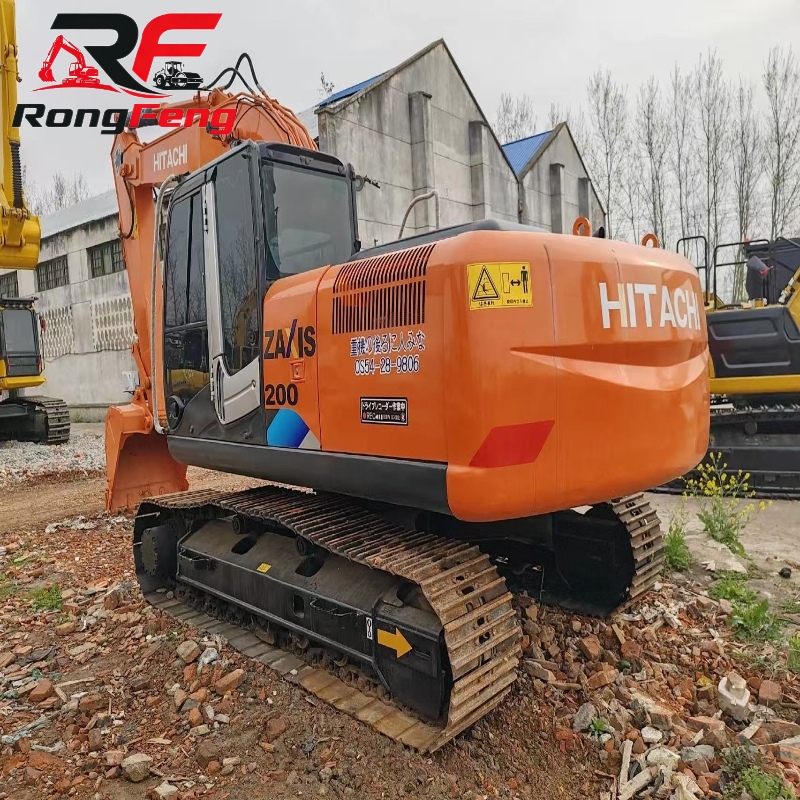

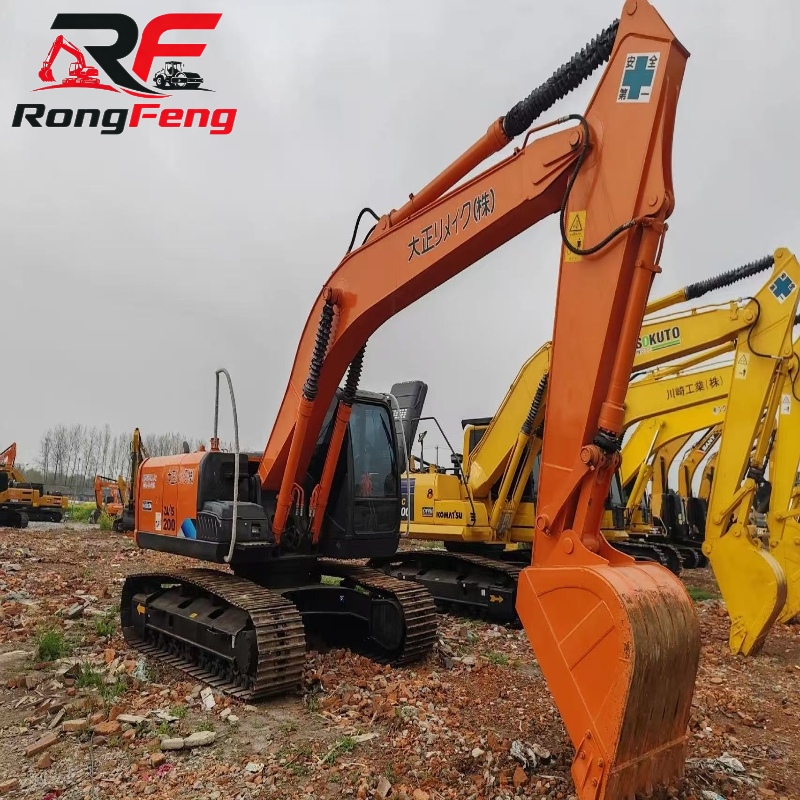

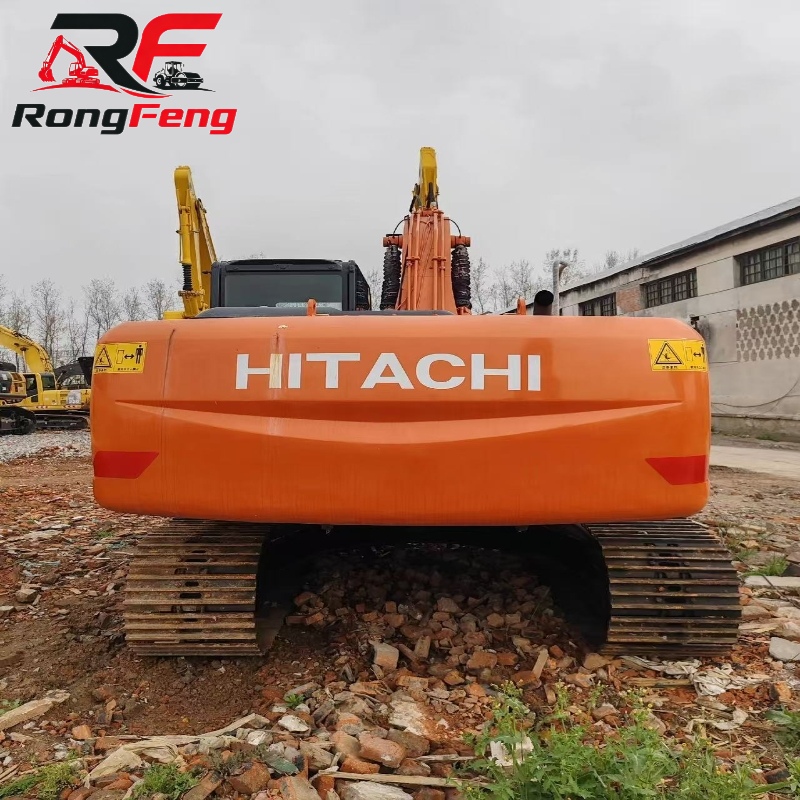

This is a used Hitachi ZX200 series 20–21 ton crawler excavator in excellent working condition. Well-maintained with low hours, no oil leaks, strong power and stable performance. Ideal for general construction, earthmoving, trenching, landscaping and road projects. Fully inspected and ready for export worldwide.

🔹 Full Specifications

Basic Information

• Brand: Hitachi

• Model: ZX200-5G / ZX200LC-5G / ZX200-7G

• Operating Weight: 19,800–21,300 kg (20–21 Ton)

• Production Year: 2018–2023

• Working Hours: 500–1,000 h

• Stock Quantity: Multiple Units

• Overall Condition: Used, Very Good

Overall Dimensions & Transport

• Overall Length: 9,210–9,520 mm

• Overall Width: 2,710–2,860 mm

• Overall Height: 2,730–3,010 mm

• Transport Method: 20GP/40GP Container, Flat Rack

Bucket Parameters

• Standard Bucket Capacity: 0.91 m³

• Optional Bucket Range: 0.51–1.20 m³

• Bucket Digging Force: 158 kN

• Arm Digging Force: 109 kN

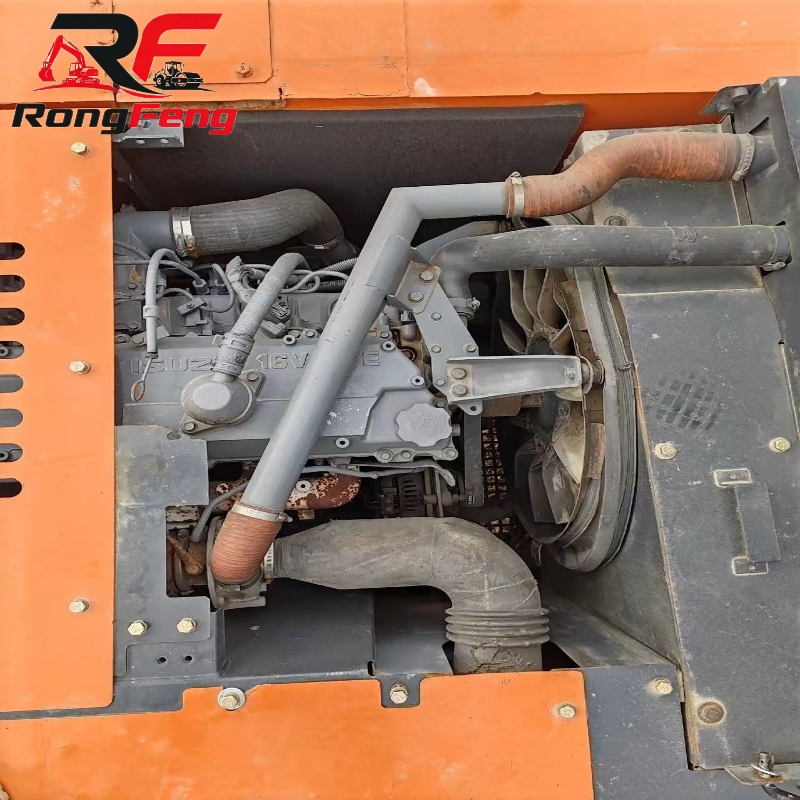

Engine System

• Engine Model: Isuzu AI-4HK1X / CC-6BG1T (4-cylinder, turbocharged)

• Rated Power: 122–125 kW / 2000–2100 rpm (163–168 HP)

• Fuel Tank Capacity: 400 L

• Emission Standard: Euro 3 / China National III

Hydraulic System

• Main Hydraulic Pump: 2 × Variable Piston Pumps

• Maximum Oil Flow: 234 L/min

• System Working Pressure: 34.3 MPa

• Hydraulic Oil Tank: 135 L (200 L full)

Working Performance

• Travel Speed: 3.0–5.5 km/h

• Swing Speed: 12.5–13.5 rpm

• Gradeability: 70% (35°)

• Max Digging Radius: 9,920 mm

• Max Digging Depth: 6,670 mm

• Max Unloading Height: 10,040 mm
